Having had the privilege of installing, running, and inspecting this secondary reardrive, I must emphasize, again, how important it is to seal the right side of the bevelbox from moisture, nastiness, and road grime.  This starts inboard of the swingarm and includes the exposed needle bearing cage and its vulnerable races. My early Sport did not have the washer installed there.



Absolutely make sure yours has that washer over the needle cage. Grease it all really well. This time, I used the Klübar Staburags to prevent anything form getting in.



Another V11 Achilles' Heel revealed!

[MartyNZ]

I'll pursue restoring the backup reardrive.

Before you buy bits for your restoration, it is worth your time to look at the parts book for the 2004 model V11. This gives you part numbers for improved (but more expensive) oil seals made of Viton.

[MartyNZ]

Having had the privilege of installing, running, and inspecting this secondary reardrive, I must emphasize, again, how important it is to seal the right side of the bevelbox from moisture, nastiness, and road grime.  This starts inboard of the swingarm and includes the exposed needle bearing cage and its vulnerable races. My early Sport did not have the washer installed there.



Absolutely make sure yours has that washer over the needle cage. Grease it all really well. This time, I used the Klübar Staburags to prevent anything form getting in.



Another V11 Achilles' Heel revealed!

The bevel box I am overhauling will have a little NAS516-1 recessed grease nipple in the housing which will allow me to pump an occasional small squirt of grease into the cavity between that needle bearing and captive axle spacer washer.

[docc]



Having had the privilege of installing, running, and inspecting this secondary reardrive, I must emphasize, again, how important it is to seal the right side of the bevelbox from moisture, nastiness, and road grime.  This starts inboard of the swingarm and includes the exposed needle bearing cage and its vulnerable races. My early Sport did not have the washer installed there.



Absolutely make sure yours has that washer over the needle cage. Grease it all really well. This time, I used the Klübar Staburags to prevent anything form getting in.



Another V11 Achilles' Heel revealed!

The bevel box I am overhauling will have a little NAS516-1 recessed grease nipple in the housing which will allow me to pump an occasional small squirt of grease into the cavity between that needle bearing and captive axle spacer washer.



Looking forward to a photo of that!

[czakky]

I’m about to embark on this. I have the big (outer) and little (inner) seal. Looks like I need an o-ring? Anything else you guys recommend to have on hand when doing this?

[docc]

Freeze spray, heat gun, and a freezer. Makes that inner bearing a breeze as long as you take the temperature high enough (100ºC).

[MartyNZ]

On 4/13/2018 at 11:33 PM, docc said:

Looking forward to a photo of that!

Drilling from the outside

[MartyNZ]

Drilling from the inside to meet halfway.

[MartyNZ]

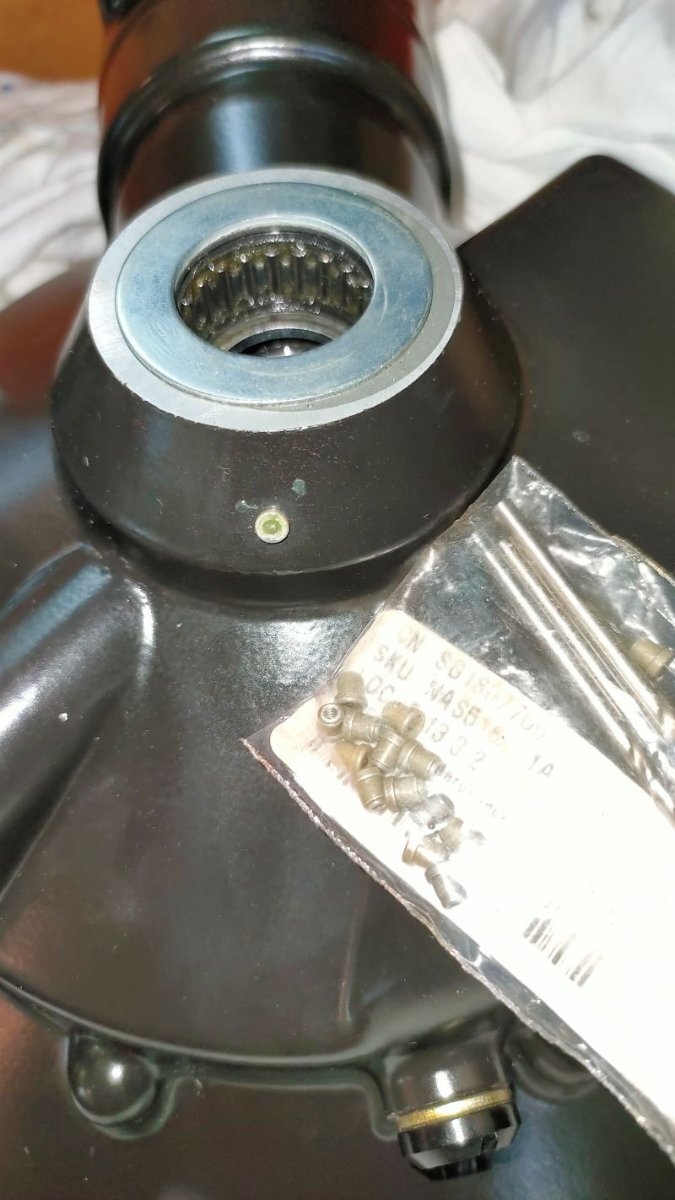

Grease nipple NAS501-1 installed. Final hole dia 2.91mm for tight fit on 3.26mm dia nipple.

I had to buy a pack of 25 grease nipples, so I have 24 spares to give away.

[MartyNZ]

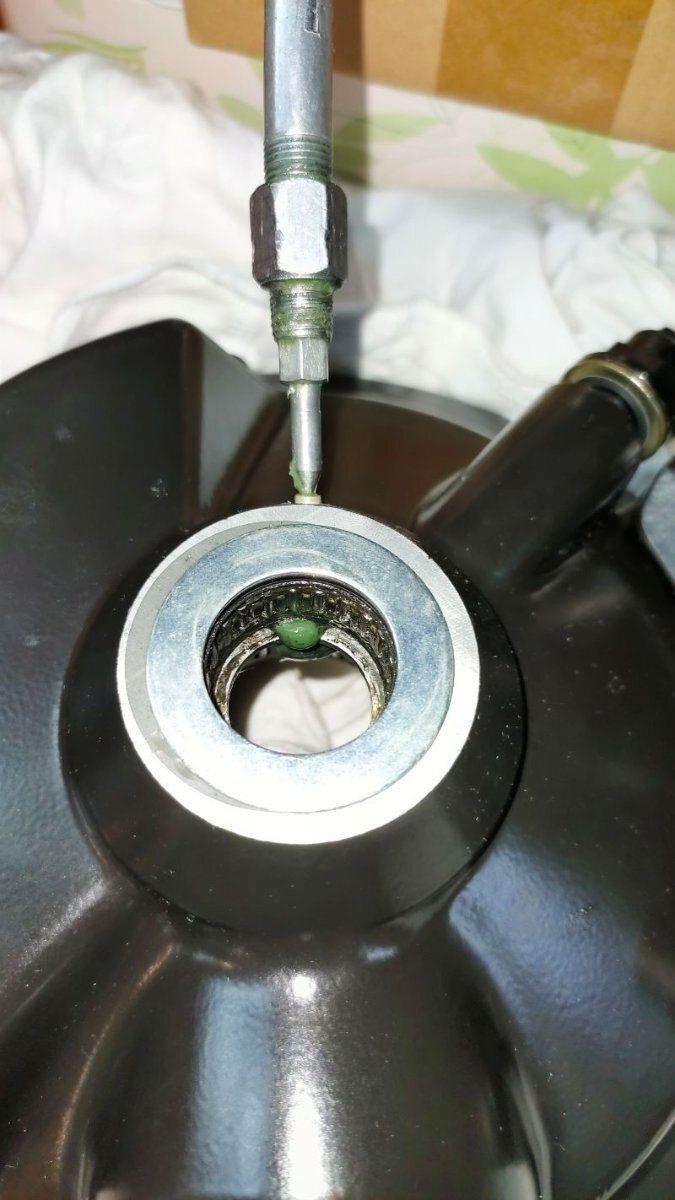

Greasing. Inner race of RH outer bearing removed. The grease will protect the crown wheel nose seal area from further rust.

[docc]

What an awesome solution, Marty! Welldone!

Let's all be acutely aware how critical it is to keep that area well greased lest the nose of the crown wheel become ruined from moisture infiltration and the drive will so longer seal.
