Marzocchi fork rebuild.

[Lucky Phil]

So I sourced a used pair of late model 43mm fork assemblies for the V10 Sport. Naturally when they arrived they were not quite what I expected condition wise probably due to the less than ideal packaging. Both legs were leaking with one side disguised by a piece of absorbent material under the dust seal and the other not. There was obvious damage to the other chrome slider as shown below. Both are dead straight and the stanchions are in good condition considering their age with minimal wear. The bushes were also fine for wear but they'll get replaced anyway. The real issue is removing the brake and axle brackets to get the sliders re chromes and ground. There is a small grub screw in the brake bracket which comes out with some heat to release the Loctite but the damage to the slider threads it causes needs to be addressed before the joyous job of trying to remove the sliders themselves. I drilled a small 5mm screw ( locking grub screw size) down the centre screwed it back into the bracket then took a 3mm drill ground flat on the end with some cutting clearance ground on the tip and used that to remove the damage caused by the pointed grub screw. Worked well. A 3mm end mill would work better if you have one. Next issue is the bracket removal itself which needless to say is held on with loctite on the very fine threads used on the chrome sliders. These are notoriously hard to remove and need quite a bit of heat application to break the locking compound. I bought a 43mm clamp and also drilled a hole in the bench for an 8mm steel rod to fit through the holes at the top of the slider to provide even more resistance to turning. You have to love the flexibility of a wooden bench for things like this.

I also machined up a pair of bushes that I could clamp into the forks that fitted a piece of steel rod I had on hand. I wanted to provide as much support to the axle lug as I could. I don't have an axle at present but I thought I'd need a bit more leverage anyway. So gas burner and temp gun in hand I heated up the bracket and they finally released from the thread locker. There's a bit of loosen and tighten work involved initially but eventually taking it steadily off they came without damage to the threads. As you can see there's a lot of thread locker on there. Most people leave this sort of thing to the fork re chroming/refurbishing guys but I like a difficult life and it saves $50/leg in costs. So next job is off to get the sliders re chromed and ground. I have a seal and bush kit on the way and I need to refinish the brackets and repair a slight graze mark from an obvious trip down the road. The objective is to replace the std cartridges with aftermarket jobs and machine up a Titanium axle.



Packaging!

Damage. To the sellers credit he refunded me the cost of repair to this leg.

The bench setup

Brackets and axle bobbins I made up. The graze on the lower bracket looks worse than it really is. I'll just use some Devcon F to fix it and shape it back before re painting in 2 pack.

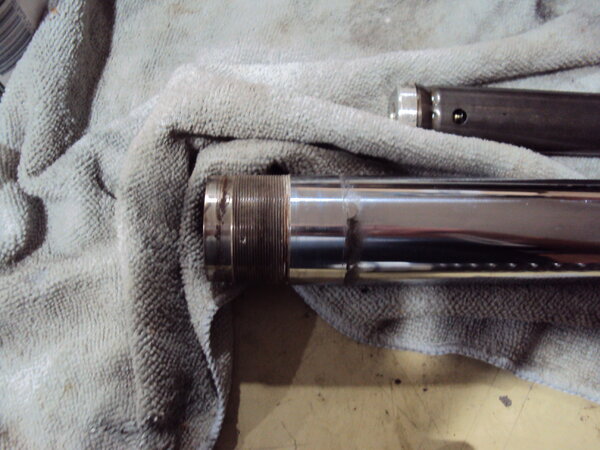

Thread damage from locking screw that requires addressing before bracket removal

Ciao

[Kevin_T]

This is interesting I have a High milage   bike that blew the seal. When I rubbed my hand over the fork tube it felt like it was shoot peened for all the stones thrown at it. I contacted someone I thought could handle the job they tried to convince me I needed beauty chrome and not hard chrome so I never followed through So I'll keep an eye on this thread and learn.

For removing threads with loctite  I started using a very large soldering iron I mean it's about 350 watts. I do have an acetylene torch with a 000 tip, but I find the iron is much more locale heat.

[MartyNZ]

14 hours ago, Lucky Phil said:

So I sourced a used pair of late model 43mm fork assemblies for the V10 Sport.

Are you going to rebuild back to standard, or do you have something better in mind?

[Lucky Phil]

6 hours ago, Kevin_T said:

This is interesting I have a High milage   bike that blew the seal. When I rubbed my hand over the fork tube it felt like it was shoot peened for all the stones thrown at it. I contacted someone I thought could handle the job they tried to convince me I needed beauty chrome and not hard chrome so I never followed through So I'll keep an eye on this thread and learn.

For removing threads with loctite  I started using a very large soldering iron I mean it's about 350 watts. I do have an acetylene torch with a 000 tip, but I find the iron is much more locale heat.

The area and amount of loctite here is too great for a soldering iron. It's a 43mm dia tube and the threads are about 15mm deep plus another 20mm of plain sleeve that the loctite also affects and a sizeable alloy fitting.

Yes it's hard chromes and needs to be sized and ground and checked for straightness. I checked and mine are perfectly straight so thats fine.

Ciao

[Lucky Phil]

1 hour ago, MartyNZ said:

Are you going to rebuild back to standard, or do you have something better in mind?

No, going to use aftermarket cartridges with rebound in one leg and comp in the other. These later forks are rebound only adjustment.

Ciao

[Lucky Phil]

While the sliders are away getting re furbished I thought I'd re finish the brake and axle fittings and also the upper clamp Scud sold me in Matt Black 2K. I went to the effort of removing the casting line on the clamp which was a wasted effort in reality. I just used JB weld to fix the slight damage on the r/h fitting as it's of no structural significance.

Before

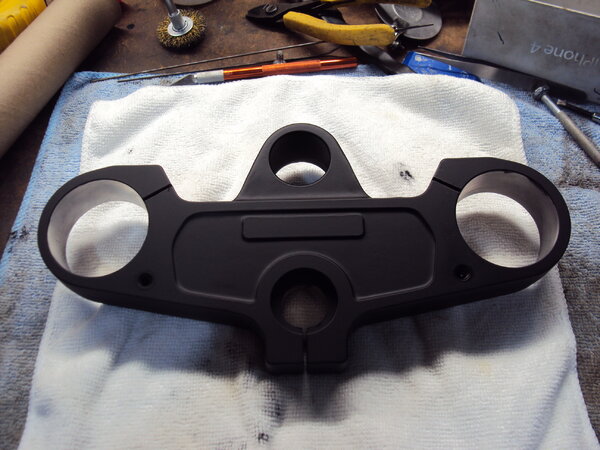

After



Ciao

[Scud]

Haha, I thought about smoothing out the cast line when I got my triple clamps powder coated. Ended up not doing it - makes me feel better hearing you say it was waste of time. But you saved a couple grams of weight...

[Lucky Phil]

16 minutes ago, Scud said:

Haha, I thought about smoothing out the cast line when I got my triple clamps powder coated. Ended up not doing it - makes me feel better hearing you say it was waste of time. But you saved a couple grams of weight...

Yes, there was a little voice in my head saying this might be a mistake. It just really doesn't add anything aesthetically to be honest and it's originally there as a kind of consistent line break where the angles change as the faces aren't flat. Mine looks fine but adds nothing really. This bike is going to confuse the hell out of someone if it's ever owned by a Guzzi enthusiast when I'm gone.

Ciao

[Scud]

^ they'll find this site and realize what a special machine they have.

[Lucky Phil]

So I finally got these 43mm forks back together save for the cartridge installs. The sliders were re chromed and ground and I re assembled the axle/calliper brackets onto them. I sourced a set of seals and the bushes we in good condition. I also sourced a seal driving tool as well. So my methodology was to cut to size a piece of very thin clear plastic probably only .3mm thick from a Chocolate box as it happens and smooth the edges and wrap that around the end of the sliders to guide the seals over the slider end and upper guide bush recess then feed the dust and oil seal onto the plastic protector get them onto the main chrome section and remove the plastic protector. Work the seals and retainer clip and lower bush and it's washer down the leg then install the upper guide bush and fit the slider into the stanchion. I then used the seal driver to install the lower bush with it's washer on top. This was really only a tap fit and didn't really require any hammering. Next was the oil seal and the driver was used just as a means to push the seal into place. So with the leg up side down on the bench grab the seal driver and pull it down hard and the lubed seal just pushes in without a lot of force. Then a couple of impacts with the driving tool just to make sure it's seated and check the retaining clip groove is clear and install the clip, remove the tool and push the dust seal into place. Installing the bush and seal was very easy and requires no real hammering etc. I had ordered a set of Andreani cartridges and they dont fit. The caps are the wrong thread pitch and dia for the 43mm forks of the later bikes. Andreani and the seller weren't interested in sorting the problem so I've sent them back for a refund. Incredibly, although I sent Andreani and the seller images and measurements and proved to them that their cartridges they claim fit all V11 Sports from 01-2006 dont fit the later 43mm equipped bikes they seem disinterested in helping and are still advertising them as fitting all bikes from 01 onwards. This situation has arising before with another member here in 2019 and they still haven't sorted it. I mentioned that this was NOT a new issue and sent them the link from here and still no interest from them. I may get Maxton to make me some cartridges or I may just use the originals, don't know yet. Forgot to take images of the forks before assembly, sorry.









Phil
